Water and Wastewater Industry

For potable water service, the gating fact is NSF/ANSI 61 certification per product code. Belzona 5811DW2 is the workhorse immersion-grade coating for potable water tanks and treatment-side equipment. Belzona 5812DW handles cold drinking water service. Belzona 5892 is the hot potable water variant. Belzona 1341 (Supermetalglide) carries the same NSF/ANSI 61 approval and is the specified coating where the duty calls for an erosion-resistant flow surface — circulating pump volutes, valve bodies, and metering chamber walls. Specifications written against generic 'NSF-approved Belzona' claims should be rejected; the certification attaches to the product code, not the brand.

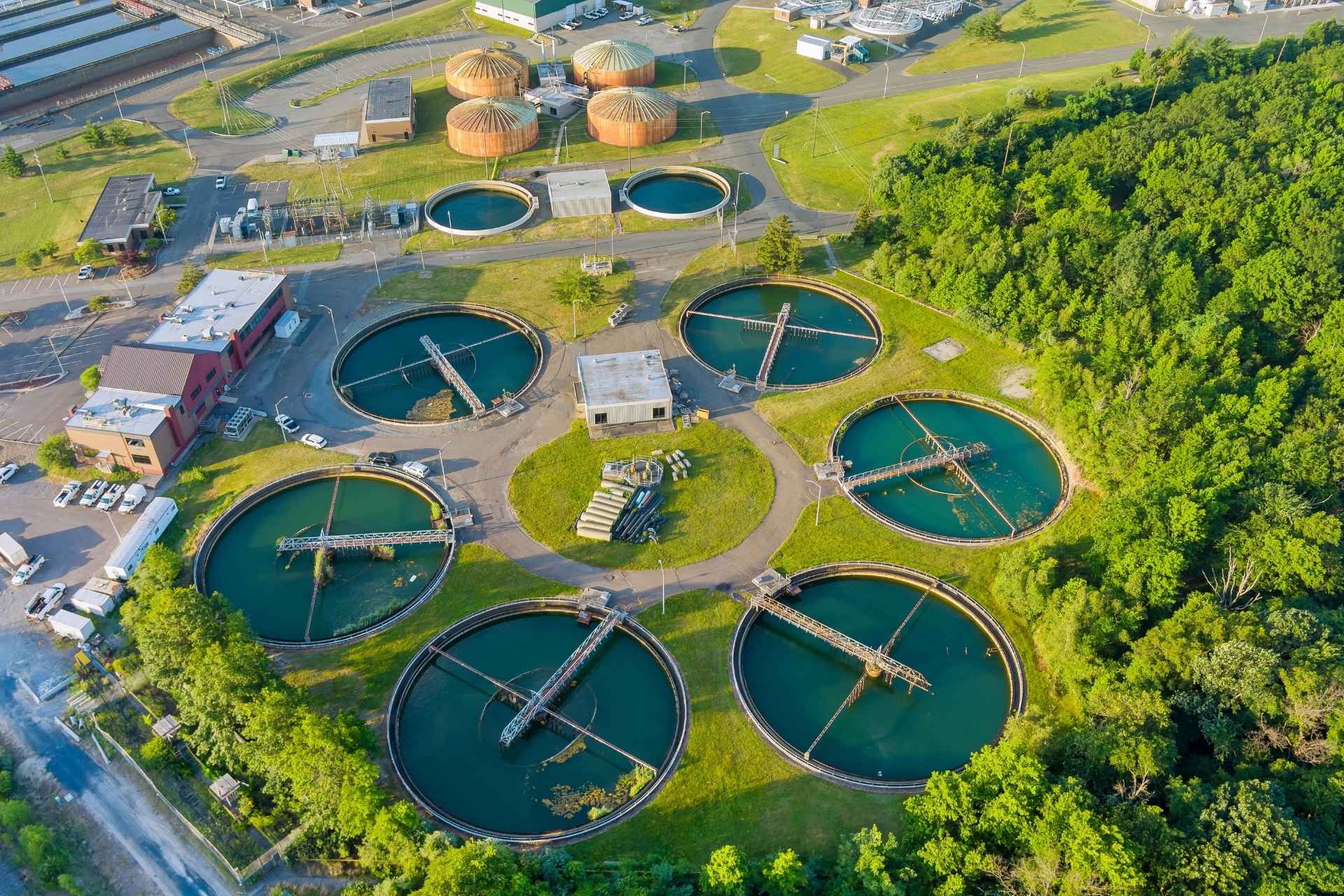

Clarifier skirts, scraper arms, weir surfaces, and the structural steel inside the basin corrode from the combination of standing water, biological activity, and seasonal chemistry shifts. Belzona 5811 (Immersion Grade) coats the internal surfaces; the surface-tolerant variant 5831 (ST-Barrier) handles the sections where complete dry-out isn't operationally feasible. Aluminum panels — common on older clarifier skirts — are coated with the same family with appropriate primer.

Lift stations face the worst chemistry profile in the wastewater train: H₂S corrosion above the waterline, biological attack below, and freeze-thaw at the splash line. The 5000-series immersion-grade and surface-tolerant coatings handle the wet-side; the 4000-series chemical-resistant family (4311, 4331) is specified for the headspace and high-chemistry exposure zones above the waterline.

Live leak repair on operating sludge piping is one of the highest-value Belzona applications in this sector — a single leak repaired in service, without isolating a half-mile force main, recovers its specification cost on the avoided shutdown alone. The repair uses composite wrap systems applied under flow; the bond holds long enough to schedule the proper isolation and a permanent repair without an emergency response. The KHIA case Live Leak Repair to 8" Sludge Pit Discharge Pipe with Belzona documents the procedure on an operating system.

Erosion-corrosion on circulating pumps and valve bodies in raw water and wastewater service is rebuilt with the 1000-series composites (1111 Super Metal, 1311 Ceramic R-Metal) and topcoated with 1321 (Ceramic S-Metal) for the smooth, erosion-resistant flow surface. On potable side, the same rebuild logic applies but the topcoat must be NSF/ANSI 61 approved (1341 Supermetalglide).

Plant-side chemical handling — sodium hypochlorite, sulfuric acid, ferric chloride, polymer feed — needs the chemical-resistant 4000-series family. Concrete bunds are rebuilt with 4111 / 4131 / 4141 and top-coated with the appropriate Magma CR-grade for the on-site chemistry list, identical to the chemical-industry repair sequence.

Adjacent sectors that share regulatory and chemical-handling overlap: Chemical Industry, General Maintenance, Food and Drink Industry (NSF and hygienic overlap). Asset-level deep dives: Pumps, Tanks & Chemical Containment Areas, Pipelines, Process Vessels, Valves, Pipes & Fittings.
