Belzona 4111
Magma-Quartz
A two-component epoxy resin combined with quartz aggregate for repairing and resurfacing damaged concrete and stonework.
A two-component epoxy resin (Belzona 4151) combined with selected quartz particles for repairing and resurfacing concrete and stonework damaged by impact, vibration, chemicals, and environmental attack.
- SeriesBelzona 4000 Series
- Documents4
Overview of Belzona 4111
Belzona 4111 (Magma-Quartz) is a high-strength concrete and stonework repair system, comprising a two-component epoxy resin (Belzona 4151) combined with selected pre-wetted quartz particles. The resulting compound is engineered to withstand demanding industrial environments, with outstanding compressive strength, abrasion resistance, and chemical resistance once cured.
Suitable for repairing and rebuilding any structure where surfaces or substrates have been damaged by impact, vibration, chemicals, or environmental attack — including concrete, brick, marble, and stone. Also used for grouting, bonding, lining concrete surfaces subject to chemical attack, and resurfacing areas subject to extreme wear, impact, and abrasion.
Key Benefits
Exceptional compressive strength for load-bearing applications and demanding mechanical environments
Outstanding protection against wear, impact and abrasion
Outstanding resistance to a wide range of chemicals
No solvents, no shrinkage during cure
100% solids formulation reduces health and safety risks in confined spaces with no shrinkage on cure
Bonds strongly to virtually any rigid surface
Application Areas
What this product handles, grouped by equipment area — each links to the full application.
Floor Problem Areas
6 applications- Chemical containment area floorsChemical storage tank topsLearn more
- Concrete & stone repair/resurfacingHorizontal repair of concrete and stone substrates damaged by impact, abrasion, or acid attackLearn more
- Building floors, industrial surfacesIndustrial concrete floors fail at construction joints, equipment bases, and forklift wheel paths where impact and abrasion combine to spall the surface and expose rebar…Learn more
- General sealing & bonding resinStandalone two-component epoxy resin for sealing and bonding applicationsLearn more
- Concrete floor and structural repairConcrete cracks fall into two failure modes that need different repair products: shrinkage and thermal cracks that are dimensionally stable, and live cracks driven by on…Learn more
- Industrial floors under chemical & mechanical attackIndustrial floors, walls, and stairways exposed to mechanical and chemical attackLearn more
Buildings & Structural Steel
1 applicationTechnical Data
Composition
- Type
- Two-component epoxy resin (Belzona 4151) with selected quartz aggregate
- Mixing Ratio by Weight (Base : Solidifier : Aggregate)
- 2 : 1 : 30
- Mixing Ratio by Volume (Base : Solidifier)
- 2 : 1
Components
- Base
- Clear liquid, light amber, viscosity 5–7 poise at 77°F (25°C), density 1.16 g/cm³
- Solidifier
- Clear liquid, amber, viscosity 0.5–1.5 poise at 77°F (25°C), density 1.00 g/cm³
- Aggregate
- Pre-wetted, fine granular powder, light gray or beige, density 2.6–2.9 g/cm³
Application
- Working Life
- 30 minutes at 77°F (25°C) — varies with temperature
- Coverage Rate
- 12 ft² (1.1 m²) at ¼ inch (6 mm) film thickness per 15 kg unit
- Volume Capacity
- 414 in³ (6,783 cm³) per 15 kg unit
- Shrinkage (ASTM C157)
- No measurable shrinkage during cure
Compressive Properties
- Compressive Strength (ASTM D695)
- 13,000 psi (89.63 MPa)
- Compressive Modulus (ASTM D695)
- 1.16 × 10⁵ psi (800 MPa)
Flexural Properties
- Flexural Strength of material (ASTM D790)
- 5,500 psi (37.9 MPa)
- Flexural Strength of polymeric binder (ASTM D790)
- 13,000 psi (89.6 MPa)
- Flexural Modulus (ASTM D790)
- 1.01 × 10⁶ psi (6,964 MPa)
Adhesion
- Tensile Shear, polymeric binder to steel (ASTM D1002)
- 2,700 psi (18.62 MPa)
- PosiTest Pull-off (ASTM D4541), dry concrete
- 525 psi (3.62 MPa)*
- PosiTest Pull-off (ASTM D4541), wet concrete
- 450 psi (3.10 MPa)*
- * Cohesive failure of substrate — bond exceeds substrate strength
Abrasion Resistance (Taber, ASTM D4060, 1 kg load, per 1,000 cycles)
- Wet (H10 wheels)
- 820 mm³
- Dry (CS17 wheels)
- 14 mm³
Heat Resistance
- Heat Distortion Temperature (ASTM D648)
- 97°F (36°C)
- Thermal stability
- 300°F (150°C) dry, 140°F (60°C) wet, down to -40°F (-40°C)
Thermal Properties
- Thermal Conductivity (BS 874)
- 1.9 W/m·K
- Coefficient of Thermal Expansion (ASTM E228)
- 28.2 ppm/°C
Electrical Properties
- Dielectric Strength (ASTM D149)
- 142.5 V/mil (5,700 V/mm)
- Loss Tangent (ASTM D150) at 1 MHz
- 0.038
- Permittivity (ASTM D150)
- 4.25
- Surface Resistivity (ASTM D257)
- 3.98 × 10¹⁴ ohms
- Volume Resistivity (ASTM D257)
- 1.0 × 10¹³ ohm·cm
Chemical Resistance
- Excellent resistance to inorganic acids and alkalis at concentrations up to 20%
- Resistant to hydrocarbons, mineral oils, lubricating oils, and many other commonly found chemicals
- Refer to the Chemical Resistance chart for detailed compatibility information
Approvals
- U.S.D.A.
- General Motors, Ford
- G.E. Nuclear Energy
- Florida DOT
- Rhode Island DOT
Shelf Life
- 5 years from date of manufacture in unopened containers stored between 32°F (0°C) and 86°F (30°C)
Working Life
From commencement of mixing, use within:
- 41°F (5°C)
- 2 hours
- 50°F (10°C)
- 1 hour
- 59°F (15°C)
- 45 minutes
- 68°F (20°C)
- 35 minutes
- 77°F (25°C)
- 30 minutes
Curing Time
For ¼ in. (6 mm) film thickness — reduced for thicker, extended for thinner sections
At 41°F (5°C)
- Resist pedestrian traffic
- 16 hours
- Machine hard
- 24 hours
- Full mechanical hardness
- 2 days
- Full chemical resistance
- 14 days
At 59°F (15°C)
- Resist pedestrian traffic
- 6 hours
- Machine hard
- 8 hours
- Full mechanical hardness
- 24 hours
- Full chemical resistance
- 10 days
At 77°F (25°C)
- Resist pedestrian traffic
- 4 hours
- Machine hard
- 6 hours
- Full mechanical hardness
- 16 hours
- Full chemical resistance
- 5 days
Service Temperature Limits
- Service Temperature (dry)
- Up to 300°F (150°C)
- Service Temperature (wet)
- Up to 140°F (60°C)
- Minimum Service Temperature
- -40°F (-40°C)
- Storage Temperature
- 32°F (0°C) to 86°F (30°C) in unopened containers
- Heat Distortion Temperature (ASTM D648)
- 97°F (36°C)
Product PDFs

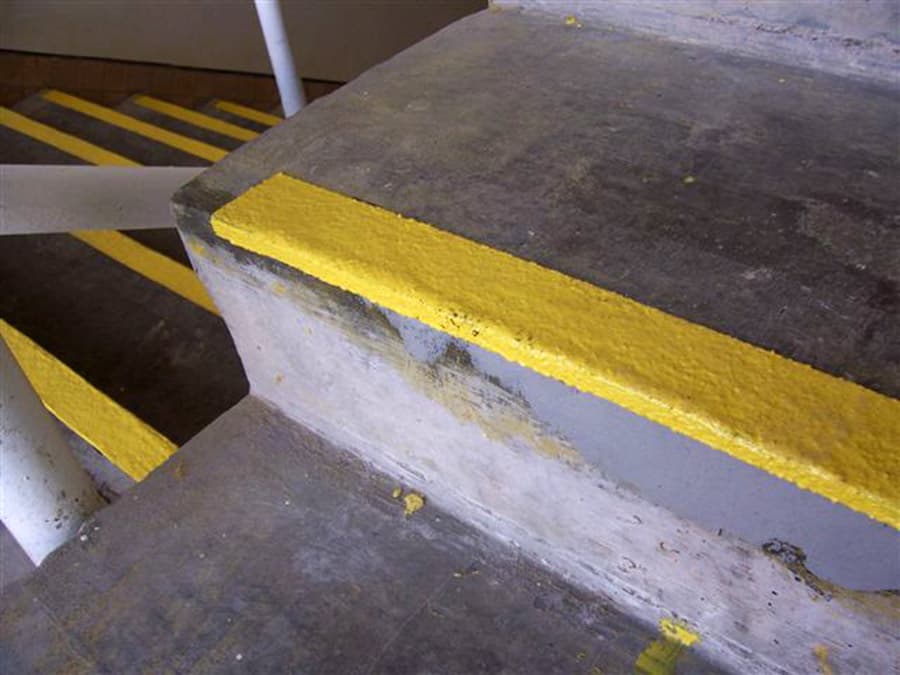

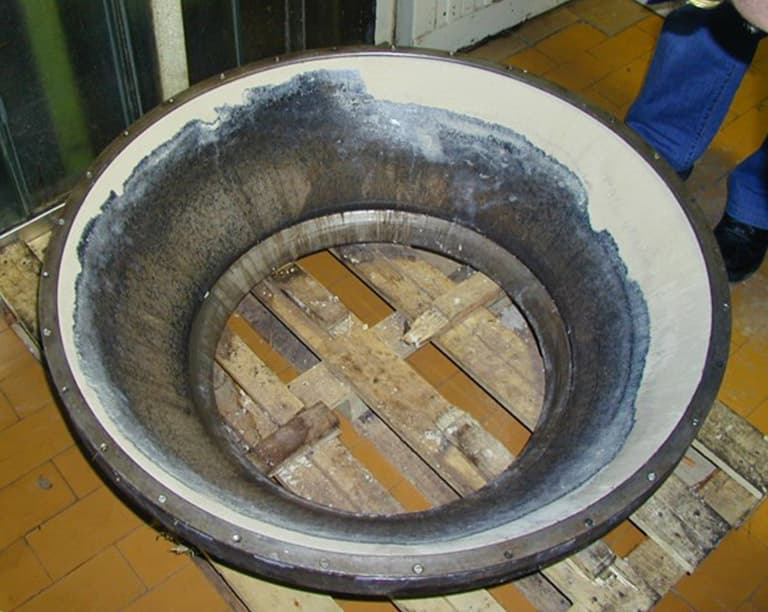

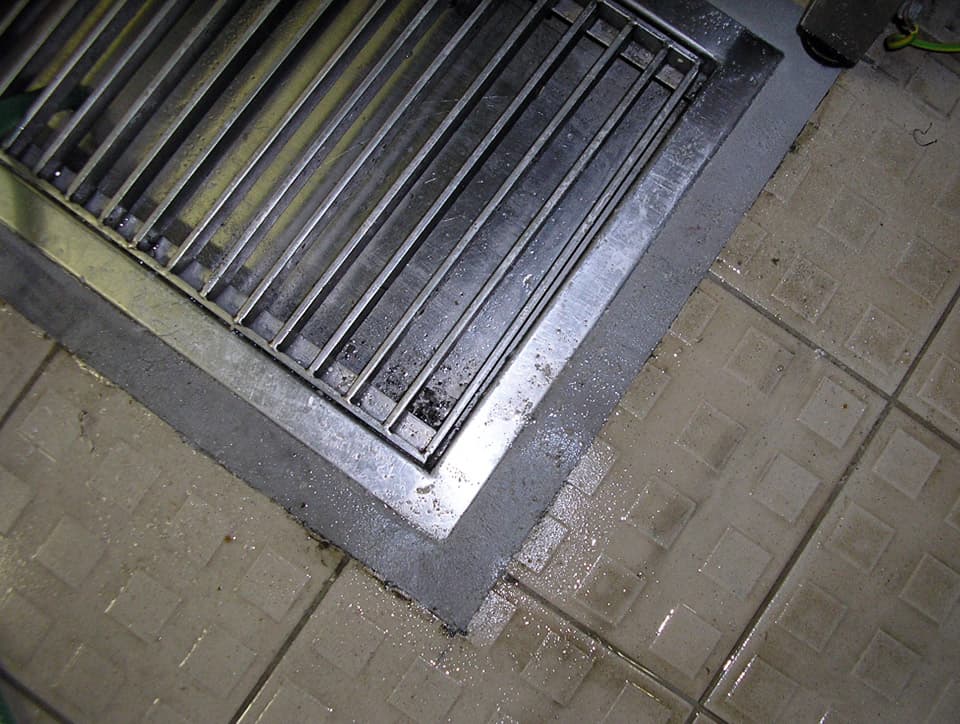

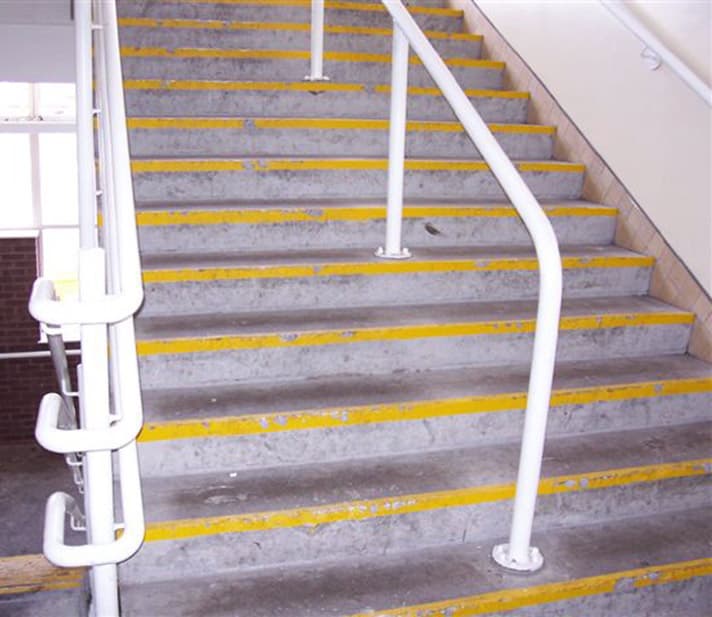

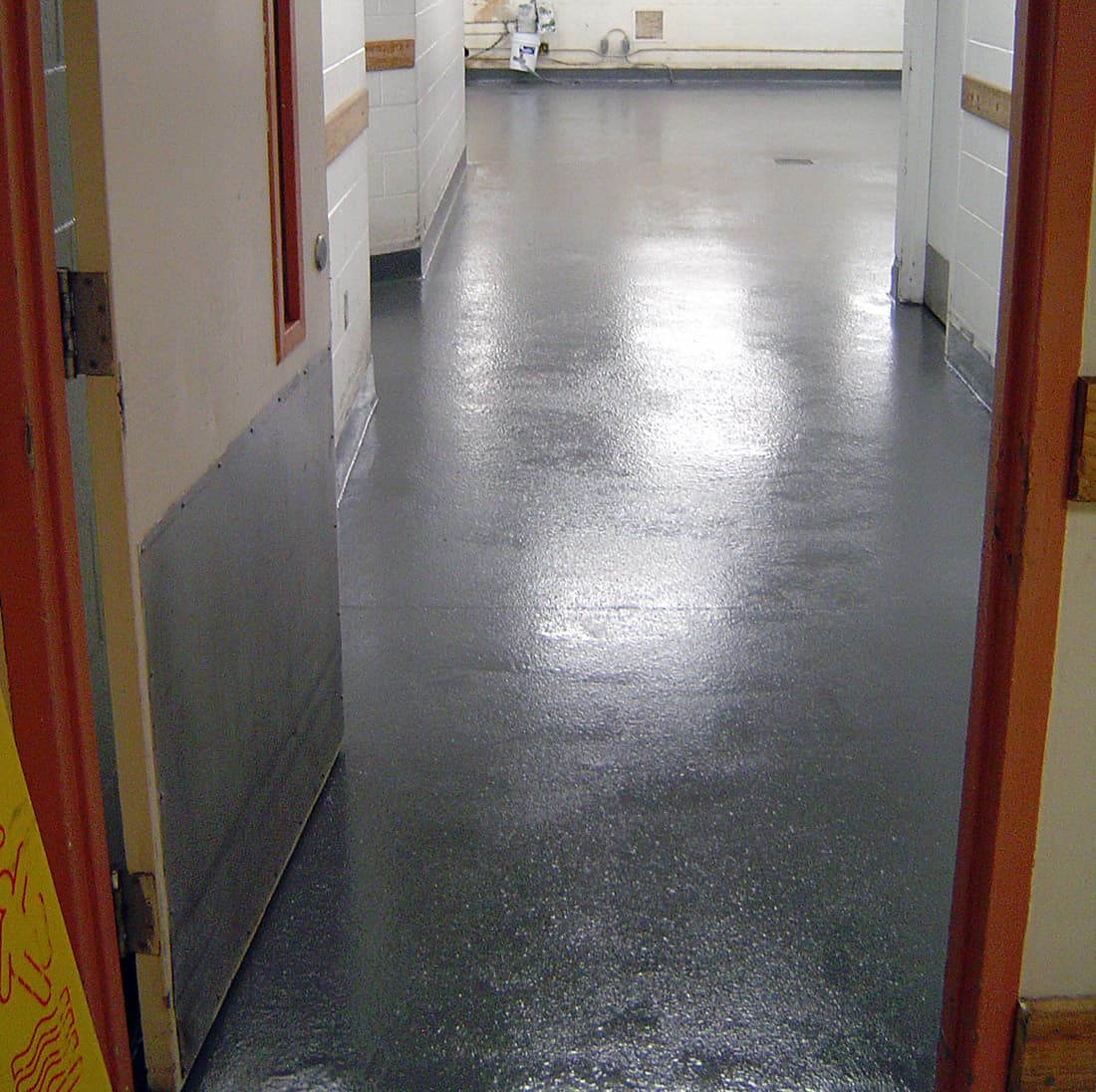

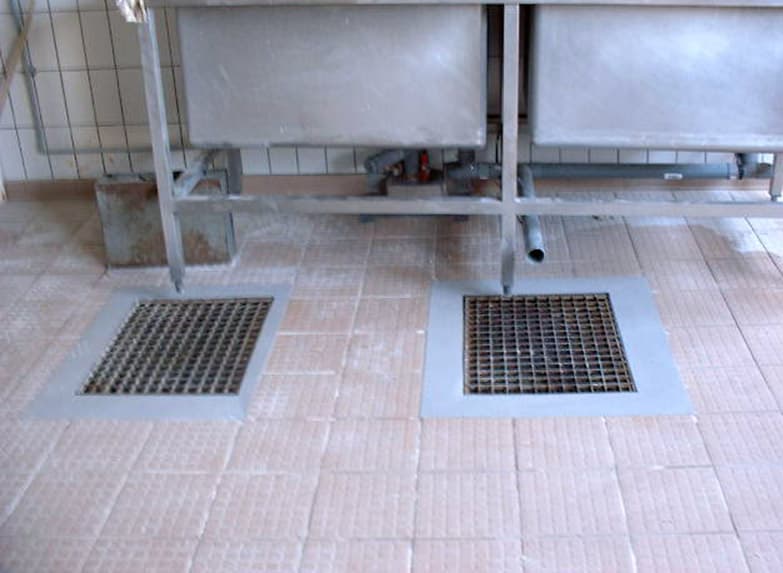

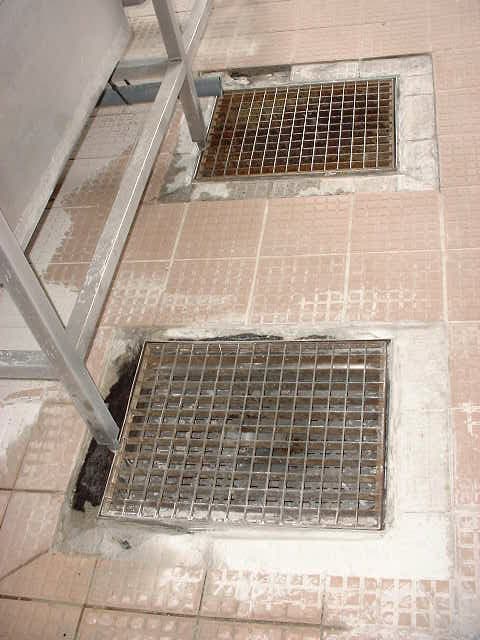

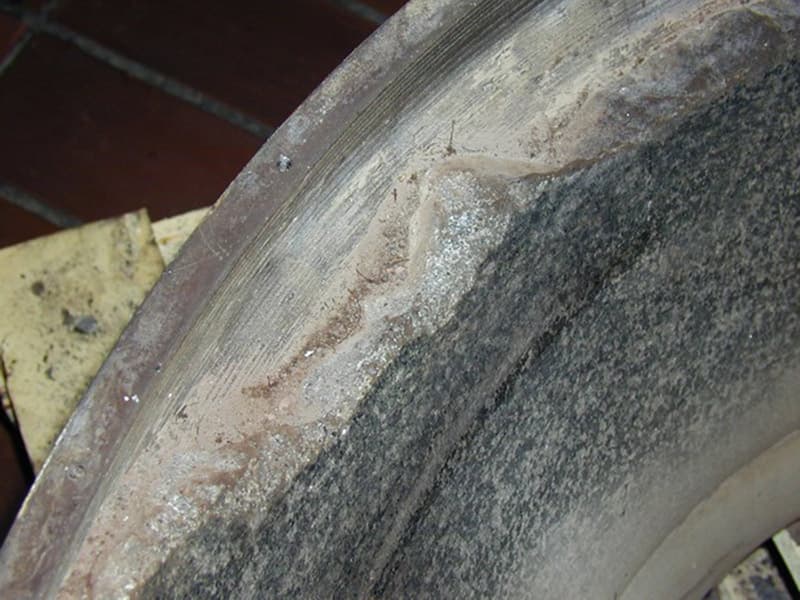

Gallery
Videos
Frequently Asked Questions
What is Belzona 4111 (Magma-Quartz) used for?
Belzona 4111 (Magma-Quartz) is a 3-part epoxy repair mortar that uses Belzona 4151 resin combined with selected quartz aggregate, designed for repairing and resurfacing concrete and stonework damaged by impact, vibration, chemicals and environmental attack. It is also used for grouting and structural bonding, with outstanding abrasion and chemical resistance.
What is the mixing ratio of Belzona 4111 (Magma-Quartz)?
Belzona 4111 (Magma-Quartz) is supplied as a 3-part system: Belzona 4151 Base and Solidifier are mixed at 2 : 1 by volume, then Belzona 4111 Aggregate is added to the desired consistency. Please see the Product Specification Sheet (PSS) for more information.
How do you apply Belzona 4111 (Magma-Quartz)?
To apply Belzona 4111 (Magma-Quartz), the surface must be clean, firm, and dry, free of paint, tar, and other coatings, and conditioned with Belzona 4911 (Magma TX Conditioner). Empty the contents of Belzona 4151 Base and Solidifier into the mixing bucket and mix to a homogeneous resin, then slowly add the Belzona 4111 Aggregate until the desired consistency. Within 30 minutes at 77°F (25°C), apply with a trowel or float onto the conditioned surface and tap down firmly to remove entrapped air. Please see the Instructions for Use (IFU) for more information.
