Belzona 1818
Surface Tolerant Abrasion Resistant
Fast-cure surface-tolerant abrasion repair for wet, oil-contaminated, and underwater surfaces.
A 2-part fast-cure surface-tolerant abrasion repair material that bonds to wet, damp, underwater, and oil-contaminated surfaces.
- SeriesBelzona 1800 Series
- Documents5
Overview of Belzona 1818
A two-component, fast curing, surface tolerant abrasion resistant system ideal for patch repairs on surfaces subject to high erosion. Belzona 1818 stands out for its ability to bond to damp, wet, underwater, and oil-contaminated surfaces, enabling repairs in environments where surface preparation is limited.
Key Benefits
Bonds tenaciously even when surface preparation is minimal or substrate is contaminated
Outstanding resistance to erosion damage in flowing fluid and abrasive environments
Rapid return to service after application
Easy to mix and apply without specialist tools
100% solids formulation reduces health and safety risks in confined spaces with no shrinkage on cure
Application Areas
What this product handles, grouped by equipment area — each links to the full application.
Chutes & Hoppers
3 applications- Chute, hopper & transfer point liningWear protection of chutes, hoppers, and transfer points handling abrasive bulk solidsLearn more
- Cyclone & separator erosion protectionErosion protection of cyclones, separators, and pneumatic conveying componentsLearn more
- Slurry pump & impeller protectionSlurry pumpsLearn more
Technical Data
Mechanical Properties
- Compressive Strength (24h, 68°F cure)
- 11,617 psi (80.1 MPa)
- Compressive Strength (194°F cure)
- 17,619 psi (121.5 MPa)
- Tensile Strength (7-day, 68°F)
- 2,875 psi (19.8 MPa)
- Flexural Strength (7-day, 68°F)
- 4,600 psi (31.7 MPa)
- Flexural Strength (post-cure)
- 5,865 psi (40.4 MPa)
- Heat Distortion Temperature (post-cure)
- 223°F (106°C)
Adhesion - Tensile Shear (Grit Blasted, ISO Sa2.5)
- Clean & Dry
- 1,115 psi (7.7 MPa)
- Transformer Oil Contaminated
- 900 psi (6.2 MPa)
- Wet
- 1,120 psi (7.7 MPa)
- Underwater
- 1,170 psi (8.1 MPa)
Adhesion - Pull-Off (Grit Blasted, ISO Sa2.5)
- Clean & Dry
- 2,370 psi (16.3 MPa)
- Transformer Oil Contaminated
- 2,040 psi (14.1 MPa)
- Wet
- 2,300 psi (15.9 MPa)
- Underwater
- 2,220 psi (15.3 MPa)
Abrasion Resistance (Taber)
- H10 Wheels (Wet, 7-day)
- 100 mm³ loss per 1,000 cycles
- CS17 Wheels (Dry, 7-day)
- 4 mm³ loss per 1,000 cycles
Grit Impact
- 2kg G34 Iron Grit at 80 psi, 90°
- 18 mm³ volume loss
Working Life
- 68°F (20°C)
- 16 minutes
Cure Times
Cure times will vary depending on ambient conditions; consult the Belzona IFU for specific details.
- Light mechanical loading possible after 2 hours at 68°F (20°C)
Service Temperature Limits
- Lower temperature limit
- -40°C (-40°F)
- Upper temperature limit (dry)
- 100°C (212°F)
- Upper temperature limit (wet/slurry)
- 80°C (176°F)
- Dry heat resistance (degradation)
- 200°C (392°F)
Mixing & Application
Product PDFs
Gallery

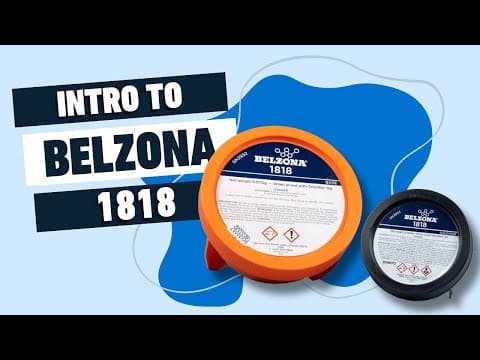

Videos
Frequently Asked Questions
What is Belzona 1818 (Surface Tolerant Abrasion Resistant) used for?
Belzona 1818 is a 2-part fast-curing surface-tolerant abrasion-resistant system ideal for patch repairs on surfaces subject to high erosion. It bonds to damp, wet, underwater, and oil-contaminated surfaces, enabling repairs in environments where surface preparation is limited.
Can Belzona 1818 be applied to wet or oily surfaces?
Yes. Belzona 1818 maintains strong adhesion when applied to wet, underwater, and oil-contaminated substrates. Pull-off adhesion remains over 2,000 psi on grit-blasted steel even when the substrate is contaminated with transformer oil or under water.
How fast does Belzona 1818 cure?
Belzona 1818 has a working life of 16 minutes at 68°F (20°C), and supports light mechanical loading after just 2 hours at 68°F (20°C), making it well-suited for emergency repairs and fast return-to-service requirements.
